10.1 in WVA TFT display
1024 × 600 display with 350 cd/m² brightness, 1000:1 contrast and wide 89° viewing angle on each side.
PRIMARY PRODUCT IMAGEiP SeriesVERIFIED CATALOGUE REFERENCE

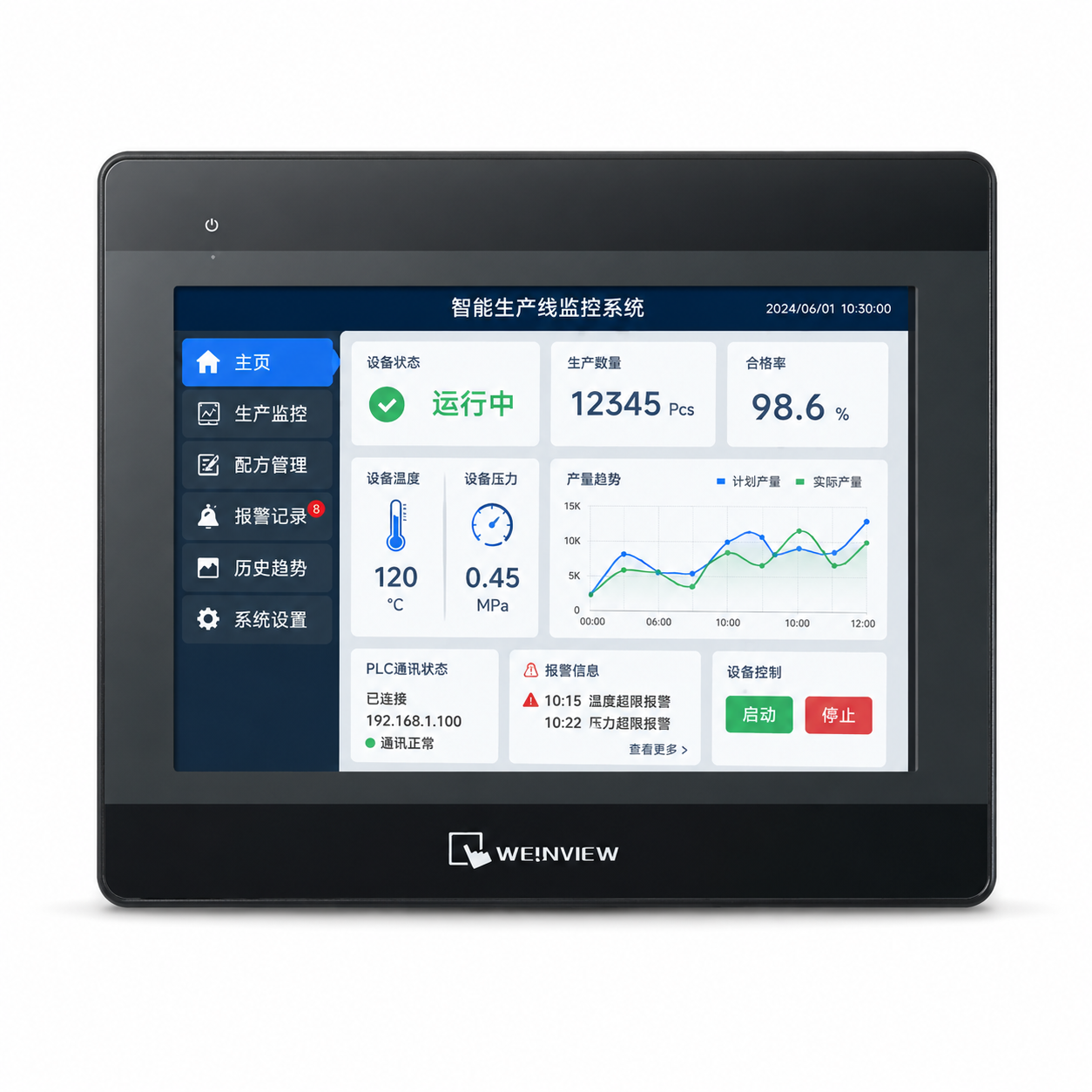

Weintek MT8106iP 10.1 in HMI Operator Panel
Weintek MT8106iP is a 10.1 in operator HMI panel for industrial machine interfaces, with 1024 × 600 WVA TFT display, resistive touch, Ethernet, USB host and serial PLC communication interfaces.
MANUFACTURERWeintek
MODEL / MPNMT8106iP
PRODUCT FAMILYiP Series
MANUFACTURER STATUSCatalogue reference · confirm availability
Technical identity verified; commercial facts deliberately withheld
No price, stock, condition, authenticity or authorised-distributor claim is published on this sample.
LOGISTICS SNAPSHOT
Product-only shipping inputsNET DIMENSIONS271 × 213 × 36.4 mm
NET WEIGHTApprox. 1 kg
UNIT ENVELOPE VOLUMEConfirm with quote
PACKED SHIPMENTConfirm with quote
Manufacturer dimensions are shown where verified. Missing net weight, total lever envelope, carton size and gross weight stay marked for confirmation before freight quotation.
- Quotation
- Human reviewed
- Availability
- Confirmed per enquiry
- Documents
- Official source linked
VERIFIED HIGHLIGHTS
MT8106iP verified product highlights
Facts below are based on Weintek manufacturer documentation, not promotional text embedded in supplied artwork.
PLC-ready communication
RS-232, RS-485 2W/4W, MPI 187.5K support, Ethernet and USB host cover common HMI integration paths.
Panel-mount industrial format
271 × 213 × 36.4 mm body with 260 × 202 mm panel cutout and IP65 / NEMA 4 front-panel rating when correctly installed.
EasyBuilder Pro workflow
Supports EasyBuilder Pro projects with events, trends, recipes, VNC server, OPC UA Client, alarms and multi-language screens.
TECHNICAL DATA
MT8106iP specifications
显示与触控
Display & touch
Screen, visual performance and operator-touch interface.
- Screen
- 10.1 in WVA wide-view TFT LCD
- Resolution
- 1024 × 600 pixels
- Brightness
- 350 cd/m²
- Contrast ratio
- 1000:1
- Display colors
- 16.7 million colors
- Backlight
- LED backlight, 50,000 h or more
- Viewing angle
- 89° / 89° / 89° / 89°
- Touch panel
- 4-wire resistive touch panel
核心硬件
Core hardware
Processor, memory and local storage resources.
- CPU
- Quad-core RISC processor
- Flash memory
- 256 MB
- RAM
- 128 MB
- USB Host
- USB 2.0 host × 1 for USB storage, mouse or printer use
- Storage temperature
- -20 to +60 °C
- Slot / download note
- No SD-card slot is listed; project transfer is handled through Ethernet or USB storage depending on engineering workflow.
通讯接口
Communication interfaces
Serial, Ethernet, USB and industrial communication capabilities.
- COM1
- RS-232 4-wire serial interface
- COM2
- RS-485 2W / 4W, including MPI 187.5K support
- COM3
- RS-485 2W or RS-232 2W
- Ethernet
- 10/100 Mbps Ethernet × 1
- Software functions
- Historical events, historical trends, recipes, VNC server, OPC UA Client, alarms and multi-language projects
电源规格
Power & isolation
Input power, current draw and isolation-related ratings.
- Power supply voltage
- 24 VDC ±20%, 19.2 to 28.8 VDC
- Typical current
- 400 mA at 24 VDC
- Dielectric withstand voltage
- 500 VAC for 1 minute
- Insulation resistance
- 50 MΩ or more at 500 VDC
机械尺寸
Mechanical & mounting
Dimensions, cutout, weight, mounting and front-panel protection.
- External dimensions (W × H × D)
- 271 × 213 × 36.4 mm
- Panel cutout
- 260 × 202 mm
- Weight / mass (product only)
- Approx. 1 kg
- Mounting method
- Panel-mount HMI installation
- Front panel rating
- IP65 / NEMA 4 when correctly panel mounted
- Packing and gross weight
- Confirm with quote
环境条件
Operating environment
Temperature, humidity, altitude and vibration conditions.
- Operating temperature
- 0 to +55 °C
- Relative humidity
- 10 to 90% RH, non-condensing
- Maximum operating altitude
- 3000 m
- Vibration resistance
- 10 to 25 Hz, 2G, 30 minutes in X/Y/Z axes
软件功能
Software functions
Engineering software, runtime functions and project-capacity notes.
- Software
- EasyBuilder Pro project software
型号与采购备注
Model identity & sourcing notes
Exact model identity, sourcing notes and quote-confirmed fields.
- Model-name note
- Official model format is MT8106iP with a lowercase i; many enquiries write it as MT8106IP.
Model-specific parameter checklist
These are the fields OMK checks for this product type before a formal quotation or replacement recommendation.
Exact model identityConfirm before quoteProduct typeConfirm before quoteElectrical ratingConfirm before quoteConnection or mounting methodPublished aboveCompatible series / systemConfirm before quoteOperating environmentConfirm before quote
Always confirm the current manual revision and installation requirements before engineering or purchasing decisions.
TYPICAL APPLICATION AREAS
Typical application areas for MT8106iP
Application fit depends on the complete machine risk assessment, wiring, environmental conditions and the latest manufacturer documentation.
- Machine HMI replacement for control panels using Weintek MT8000 iP operator interfaces
- PLC operator panels for Mitsubishi, OMRON, Siemens, Delta and other industrial automation systems
- Panel-mount maintenance projects requiring Ethernet, USB and serial communication checks before shipment
- Exact-model sourcing where MT8106IP enquiries must be confirmed against the official MT8106iP model format
MODEL-SPECIFIC RFQ
Start RFQ Need a current quote for MT8106iP?
Send quantity, destination and required date. Price and availability are confirmed before quotation.
