Product type
Optical fork sensor
PRIMARY PRODUCT IMAGEUnspecifiedVERIFIED CATALOGUE REFERENCE

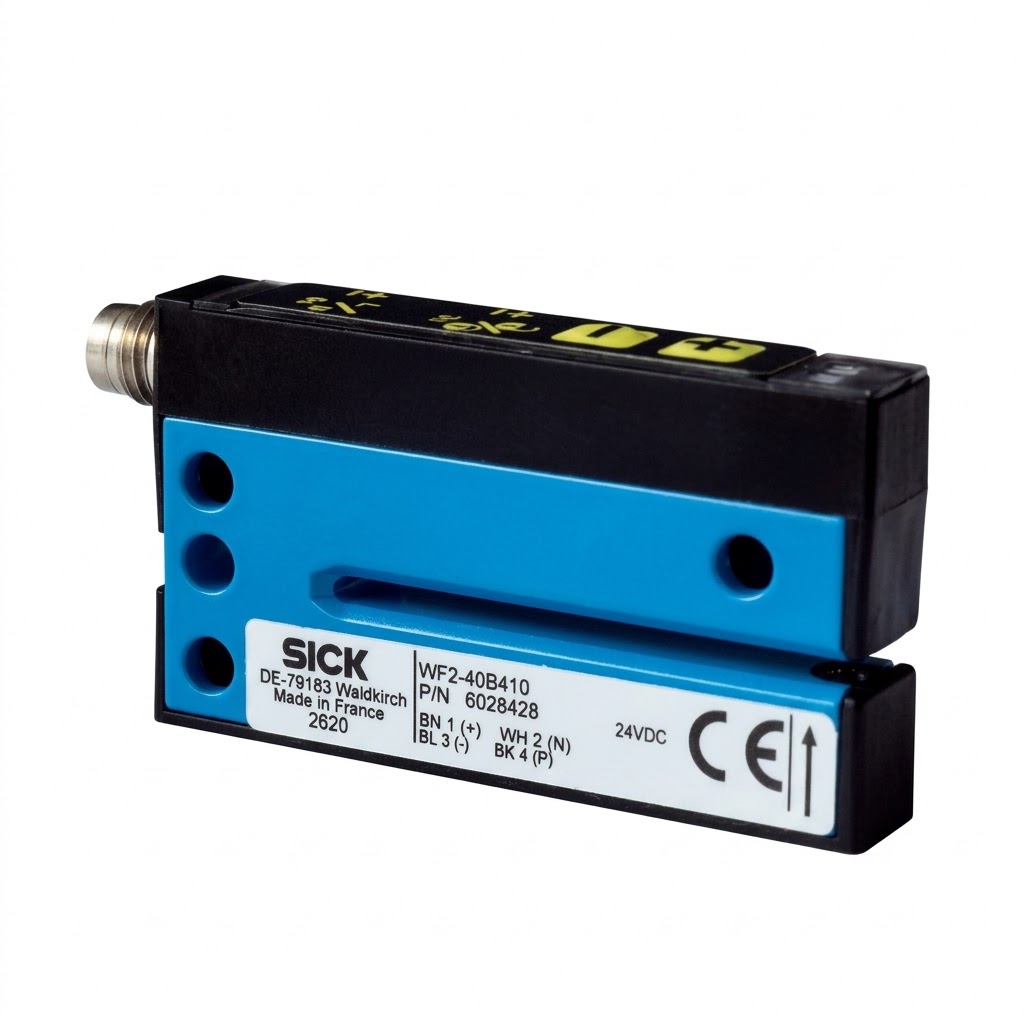

SICK WF2-40B410 Optical Fork Sensor
SICK WF2-40B410, part number 6028428, is an optical fork sensor with a 2 mm fork width and 42 mm fork depth. Infrared detection and button adjustment support label and small-object detection. Confirm target suitability and wiring requirements before ordering; condition and delivery are quoted separately.
MANUFACTURERSICK
MODEL / MPNWF2-40B410
PRODUCT FAMILYUnspecified
MANUFACTURER STATUSCatalogue reference · confirm availability
Technical identity verified; commercial facts deliberately withheld
No price, stock, condition, authenticity or authorised-distributor claim is published on this sample.
LOGISTICS SNAPSHOT
Product-only shipping inputsNET DIMENSIONSConfirm with quote
NET WEIGHTConfirm with quote
UNIT ENVELOPE VOLUMEConfirm with quote
PACKED SHIPMENTConfirm with quote
Manufacturer dimensions are shown where verified. Missing net weight, total lever envelope, carton size and gross weight stay marked for confirmation before freight quotation.
- Quotation
- Human reviewed
- Availability
- Confirmed per enquiry
- Documents
- Official source linked
VERIFIED HIGHLIGHTS
WF2-40B410 verified product highlights
Facts below are based on SICK manufacturer documentation, not promotional text embedded in supplied artwork.
Manufacturer part number
6028428
Fork width
2 mm
Fork depth
42 mm
Minimum detectable object
0.2 mm under specified conditions
Light source
Infrared LED
TECHNICAL DATA
WF2-40B410 specifications
- Product type
- Optical fork sensor
- Manufacturer part number
- 6028428
- Fork width
- 2 mm
- Fork depth
- 42 mm
- Minimum detectable object
- 0.2 mm under specified conditions
- Light source
- Infrared LED
- Supply
- 10 to 30 VDC
- Switching outputs
- PNP/NPN
- Output mode
- Light or dark switching, button selectable
- Switching frequency
- 10 kHz
- Connection
- M8 male connector, 4 pins
- Dimensions W x H x D
- 10 x 32 x 57 mm
- Calculated bounding-box volume
- 18.24 cubic centimeters; not packaging volume
- Model-specific mass and packed dimensions
- Confirm with quote
Always confirm the current manual revision and installation requirements before engineering or purchasing decisions.
TYPICAL APPLICATION AREAS
Typical application areas for WF2-40B410
Application fit depends on the complete machine risk assessment, wiring, environmental conditions and the latest manufacturer documentation.
