Product lifecycle
Active

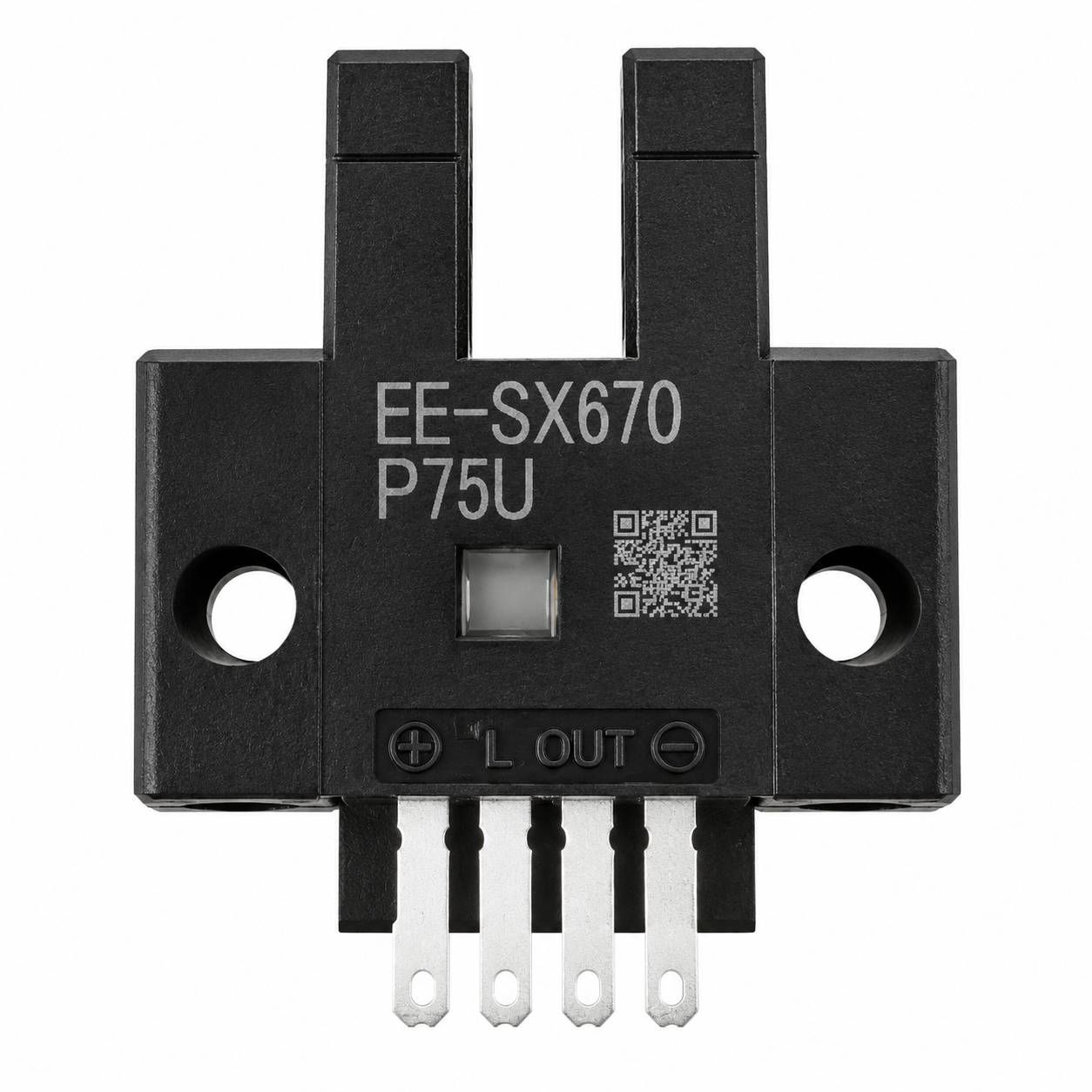

PRIMARY PRODUCT IMAGEEE-SX SeriesVERIFIED CATALOGUE REFERENCE
OMRON EE-SX670 Slot-type Photomicrosensor
OMRON EE-SX670 is a slot-type through-beam photomicrosensor with a 5 mm sensing gap, NPN output and selectable Light-ON or Dark-ON operation. It uses a plug-in connection and a 5 to 24 VDC supply for compact object detection in industrial equipment.
MANUFACTUREROMRON
MODEL / MPNEE-SX670
PRODUCT FAMILYEE-SX Series
MANUFACTURER STATUSCatalogue reference · confirm availability
Technical identity verified; commercial facts deliberately withheld
No price, stock, condition, authenticity or authorised-distributor claim is published on this sample.
LOGISTICS SNAPSHOT
Product-only shipping inputsNET DIMENSIONSConfirm with quote
NET WEIGHTConfirm with quote
UNIT ENVELOPE VOLUMEConfirm with quote
PACKED SHIPMENTConfirm with quote
Manufacturer dimensions are shown where verified. Missing net weight, total lever envelope, carton size and gross weight stay marked for confirmation before freight quotation.
- Quotation
- Human reviewed
- Availability
- Confirmed per enquiry
- Documents
- Official source linked
VERIFIED HIGHLIGHTS
EE-SX670 verified product highlights
Facts below are based on OMRON manufacturer documentation, not promotional text embedded in supplied artwork.
Device type
Photomicrosensor
Body type
Standard
Sensing method
Through-beam slot type
Maximum sensing distance
5 mm
Output
NPN
TECHNICAL DATA
EE-SX670 specifications
- Product lifecycle
- Active
- Device type
- Photomicrosensor
- Body type
- Standard
- Sensing method
- Through-beam slot type
- Maximum sensing distance
- 5 mm
- Output
- NPN
- Connection
- Plug-in
- Light source
- GaAs infrared LED
- Operation
- Light-ON / Dark-ON selectable
- Supply voltage
- 5 to 24 VDC
- Housing material
- Plastic
- External dimensions (W x H x D)
- 25.4 x 22.2 x 6.95 mm
- Image source status
- User-supplied product photograph; exact model marking visible
Model-specific parameter checklist
These are the fields OMK checks for this product type before a formal quotation or replacement recommendation.
Sensing method / sensor typePublished aboveSensing distance or compatible amplifierConfirm before quoteOutput typePublished aboveSupply voltagePublished aboveConnection / cable typePublished aboveIngress protection / operating environmentConfirm before quote
Always confirm the current manual revision and installation requirements before engineering or purchasing decisions.
TYPICAL APPLICATION AREAS
Typical application areas for EE-SX670
Application fit depends on the complete machine risk assessment, wiring, environmental conditions and the latest manufacturer documentation.
- Machine detection, positioning and presence-check tasks
- Replacement sourcing for maintenance and production-line downtime
- OEM or system-integrator bill-of-material confirmation
- Cross-checking cable, output and mounting requirements before quote
