Product type
Pipe-mount liquid level photomicrosensor

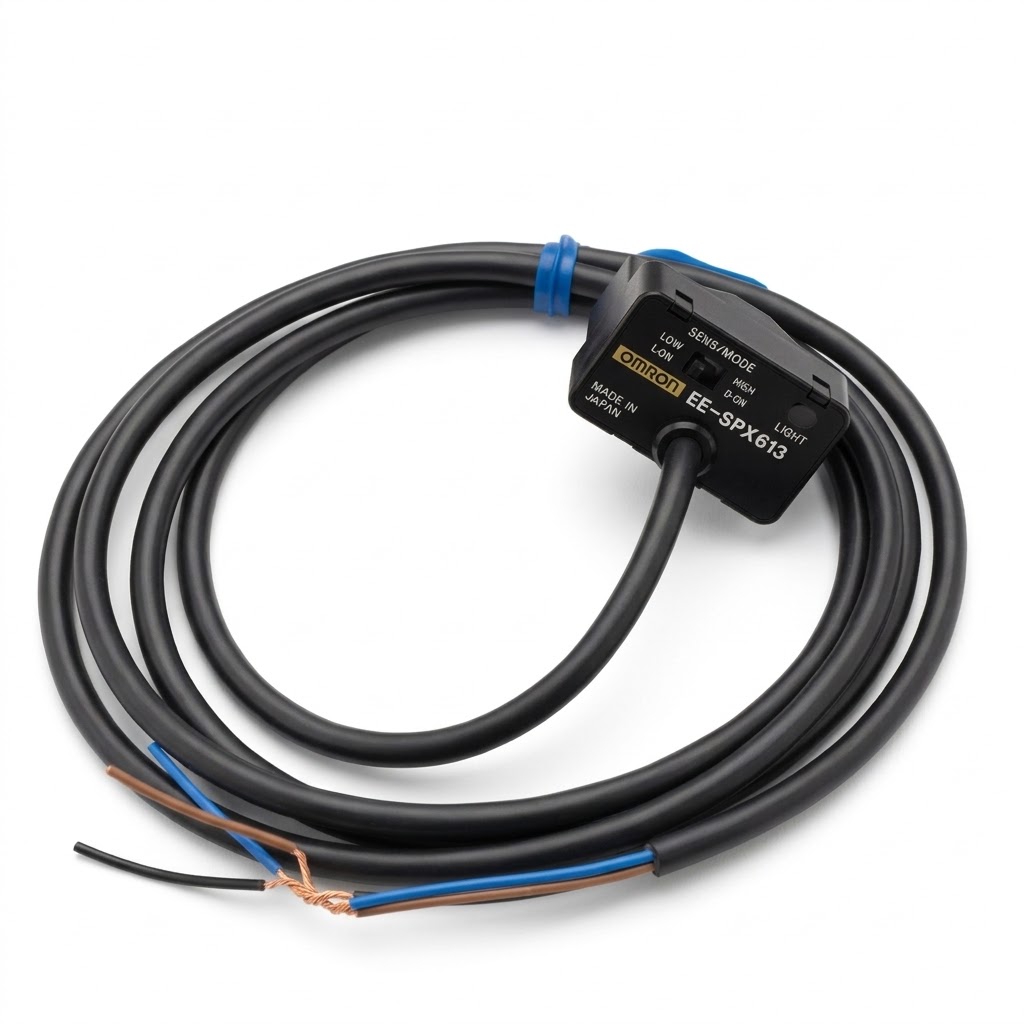

PRIMARY PRODUCT IMAGEEE-SPX SeriesVERIFIED CATALOGUE REFERENCE
OMRON EE-SPX613 Pipe-Mount Liquid Level Sensor
OMRON EE-SPX613 senses liquid through a suitable transparent pipe using an infrared beam and a built-in amplifier. Operation-mode and sensitivity selectors support setup for the application. High-viscosity liquids or floating material can affect detection; confirm the pipe material, dimensions and liquid before ordering.
MANUFACTUREROMRON
MODEL / MPNEE-SPX613
PRODUCT FAMILYEE-SPX Series
MANUFACTURER STATUSCatalogue reference · confirm availability
Technical identity verified; commercial facts deliberately withheld
No price, stock, condition, authenticity or authorised-distributor claim is published on this sample.
LOGISTICS SNAPSHOT
Product-only shipping inputsNET DIMENSIONSConfirm with quote
NET WEIGHTConfirm with quote
UNIT ENVELOPE VOLUMEConfirm with quote
PACKED SHIPMENTConfirm with quote
Manufacturer dimensions are shown where verified. Missing net weight, total lever envelope, carton size and gross weight stay marked for confirmation before freight quotation.
- Quotation
- Human reviewed
- Availability
- Confirmed per enquiry
- Documents
- Official source linked
VERIFIED HIGHLIGHTS
EE-SPX613 verified product highlights
Facts below are based on OMRON manufacturer documentation, not promotional text embedded in supplied artwork.
Applicable pipe
6 to 13 mm diameter, 1 mm wall; FEP or material with equivalent transparency
Light source
940 nm infrared LED
Supply
12 to 24 VDC +/-10 percent, ripple 5 percent maximum
Output
NPN open collector, 100 mA maximum load
Enclosure rating
IP50
TECHNICAL DATA
EE-SPX613 specifications
- Product type
- Pipe-mount liquid level photomicrosensor
- Applicable pipe
- 6 to 13 mm diameter, 1 mm wall; FEP or material with equivalent transparency
- Light source
- 940 nm infrared LED
- Supply
- 12 to 24 VDC +/-10 percent, ripple 5 percent maximum
- Output
- NPN open collector, 100 mA maximum load
- Enclosure rating
- IP50
- Operating temperature
- -10 to +55 degrees C, no icing or condensation
- Cable length and supplied accessories
- Confirm actual configuration with quote
- Net mass and shipping package
- Confirm with quote
Always confirm the current manual revision and installation requirements before engineering or purchasing decisions.
TYPICAL APPLICATION AREAS
Typical application areas for EE-SPX613
Application fit depends on the complete machine risk assessment, wiring, environmental conditions and the latest manufacturer documentation.
