Encoder type
Incremental

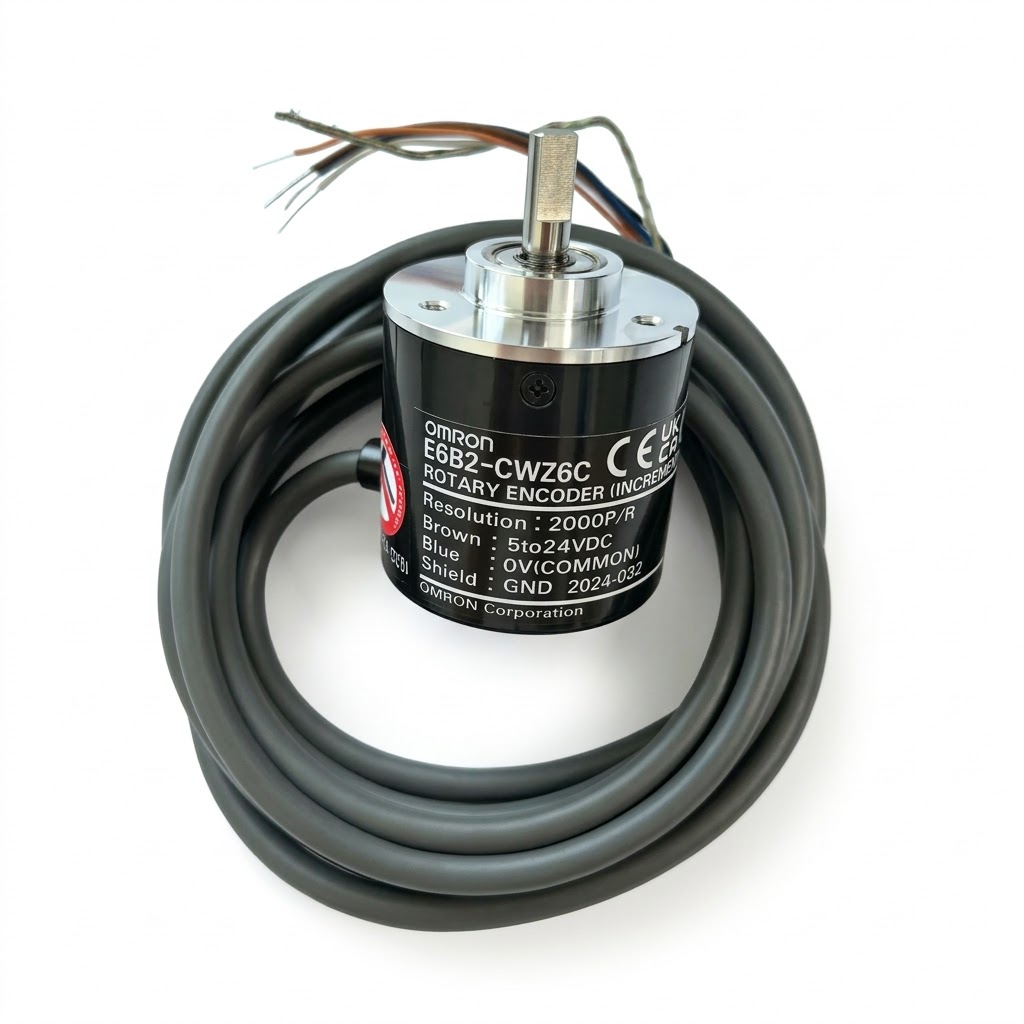

PRIMARY PRODUCT IMAGEE6B2-C SeriesVERIFIED CATALOGUE REFERENCE
OMRON E6B2-CWZ6C 2000P/R 2000 P/R Rotary Encoder
OMRON E6B2-CWZ6C 2000P/R is an incremental rotary encoder for measuring shaft rotation. It provides A, B and Z phase signals through NPN open-collector outputs. Confirm the required cable length and installation details with your quotation.
MANUFACTUREROMRON
MODEL / MPNE6B2-CWZ6C 2000P/R
PRODUCT FAMILYE6B2-C Series
MANUFACTURER STATUSCatalogue reference · confirm availability
Technical identity verified; commercial facts deliberately withheld
No price, stock, condition, authenticity or authorised-distributor claim is published on this sample.
LOGISTICS SNAPSHOT
Product-only shipping inputsNET DIMENSIONSConfirm with quote
NET WEIGHTConfirm with quote
UNIT ENVELOPE VOLUMEConfirm with quote
PACKED SHIPMENTConfirm with quote
Manufacturer dimensions are shown where verified. Missing net weight, total lever envelope, carton size and gross weight stay marked for confirmation before freight quotation.
- Quotation
- Human reviewed
- Availability
- Confirmed per enquiry
- Documents
- Official source linked
VERIFIED HIGHLIGHTS
E6B2-CWZ6C 2000P/R verified product highlights
Facts below are based on OMRON manufacturer documentation, not promotional text embedded in supplied artwork.
Resolution
2000 pulses per revolution
Output phases
A, B and Z
Output circuit
NPN open collector
Rated supply
5 to 24 VDC
Body diameter
40 mm
TECHNICAL DATA
E6B2-CWZ6C 2000P/R specifications
- Encoder type
- Incremental
- Resolution
- 2000 pulses per revolution
- Output phases
- A, B and Z
- Output circuit
- NPN open collector
- Rated supply
- 5 to 24 VDC
- Body diameter
- 40 mm
- Cable length
- Confirm with quote
Always confirm the current manual revision and installation requirements before engineering or purchasing decisions.
TYPICAL APPLICATION AREAS
Typical application areas for E6B2-CWZ6C 2000P/R
Application fit depends on the complete machine risk assessment, wiring, environmental conditions and the latest manufacturer documentation.
