Product type
Panel temperature controller
PRIMARY PRODUCT IMAGEE5 Temperature Controller SeriesVERIFIED CATALOGUE REFERENCE

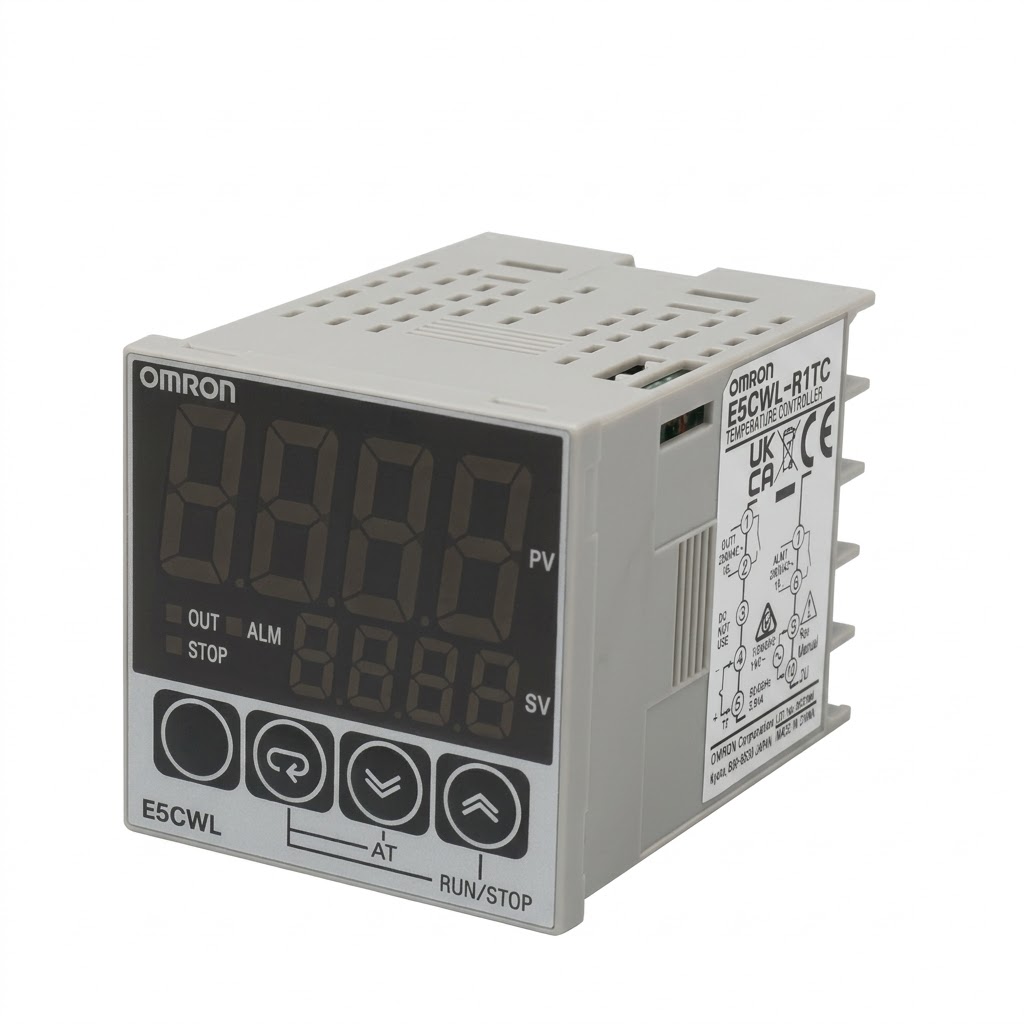

OMRON E5CWL-R1TC Temperature Controller
OMRON E5CWL-R1TC is a panel temperature controller with thermocouple input, relay control output and one alarm output. It supports ON/OFF or auto-tuned 2-PID control. The front panel is 48 by 48 mm. Confirm sensor selection, load protection and installation requirements before commissioning.
MANUFACTUREROMRON
MODEL / MPNE5CWL-R1TC
PRODUCT FAMILYE5 Temperature Controller Series
MANUFACTURER STATUSCatalogue reference · confirm availability
Technical identity verified; commercial facts deliberately withheld
No price, stock, condition, authenticity or authorised-distributor claim is published on this sample.
LOGISTICS SNAPSHOT
Product-only shipping inputsNET DIMENSIONSConfirm with quote
NET WEIGHTConfirm with quote
UNIT ENVELOPE VOLUMEConfirm with quote
PACKED SHIPMENTConfirm with quote
Manufacturer dimensions are shown where verified. Missing net weight, total lever envelope, carton size and gross weight stay marked for confirmation before freight quotation.
- Quotation
- Human reviewed
- Availability
- Confirmed per enquiry
- Documents
- Official source linked
VERIFIED HIGHLIGHTS
E5CWL-R1TC verified product highlights
Facts below are based on OMRON manufacturer documentation, not promotional text embedded in supplied artwork.
Supply
100 to 240 VAC, 50/60 Hz
Input
K, J, T, R or S thermocouple
Control output
SPST-NO relay, 3 A at 250 VAC resistive load
Alarm output
One SPST-NO relay, 1 A at 250 VAC resistive load
Control method
ON/OFF or 2-PID with auto-tuning
TECHNICAL DATA
E5CWL-R1TC specifications
- Product type
- Panel temperature controller
- Supply
- 100 to 240 VAC, 50/60 Hz
- Input
- K, J, T, R or S thermocouple
- Control output
- SPST-NO relay, 3 A at 250 VAC resistive load
- Alarm output
- One SPST-NO relay, 1 A at 250 VAC resistive load
- Control method
- ON/OFF or 2-PID with auto-tuning
- Sampling interval
- 250 ms
- Front panel dimensions
- 48 x 48 mm
- Depth behind front panel
- 60 mm
- Approximate mass
- Controller 100 g; mounting bracket 10 g
- Protection by area
- Front IP50; rear case IP20; terminals IP00
- Packed dimensions
- Confirm with quote
Always confirm the current manual revision and installation requirements before engineering or purchasing decisions.
TYPICAL APPLICATION AREAS
Typical application areas for E5CWL-R1TC
Application fit depends on the complete machine risk assessment, wiring, environmental conditions and the latest manufacturer documentation.
