SSCNET III/H network control
The B-interface amplifier uses Mitsubishi Electric SSCNET III/H for high-speed servo-system communication.
PRIMARY PRODUCT IMAGEMELSERVO-J4VERIFIED CATALOGUE REFERENCE

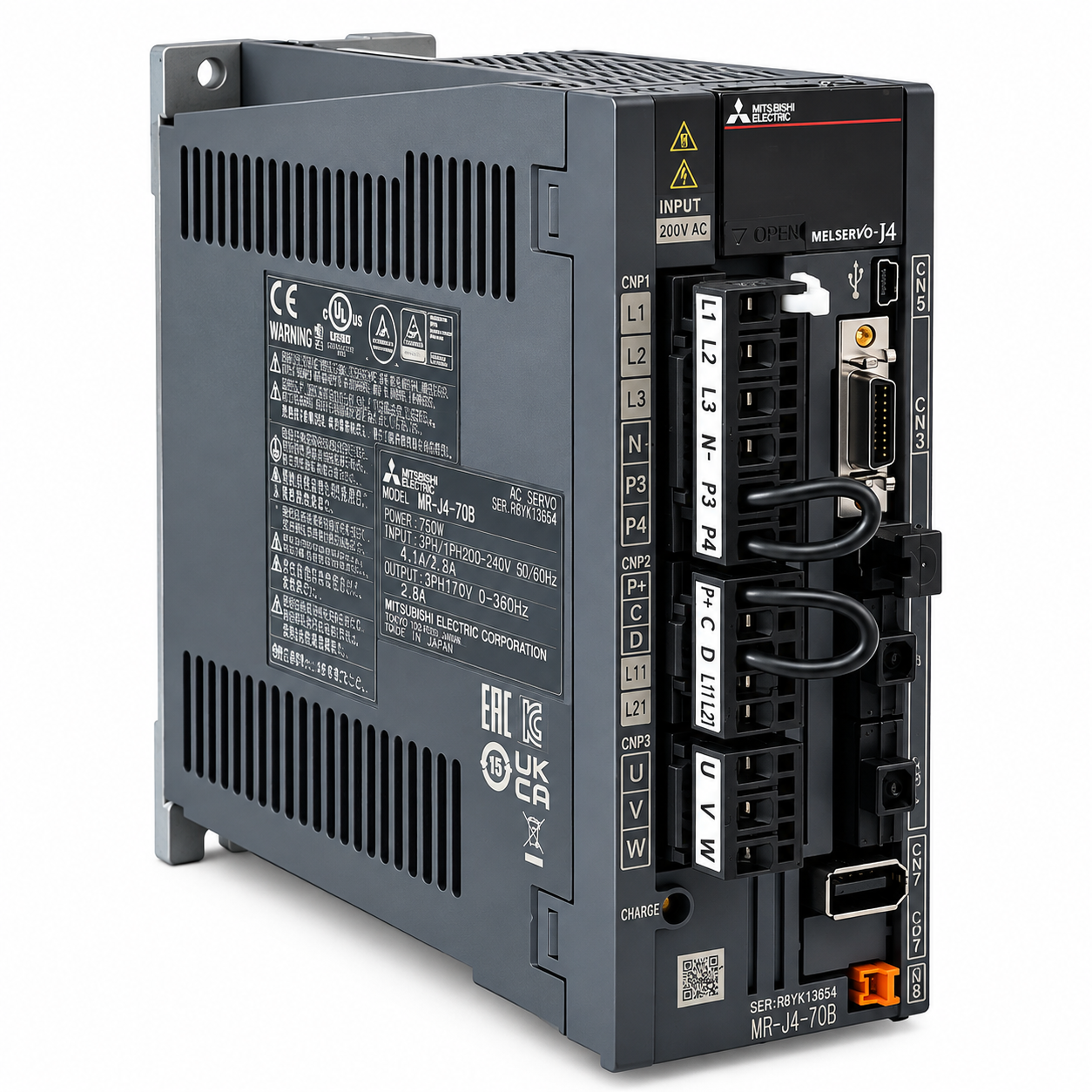

Mitsubishi Electric MR-J4-70B 0.75 kW SSCNET III/H Servo Amplifier
Mitsubishi Electric MR-J4-70B is a 0.75 kW MELSERVO-J4 servo amplifier for 200 V-class systems using the SSCNET III/H command interface. It supports 3-phase or 1-phase 200 to 240 VAC main power, sine-wave PWM current control, built-in dynamic braking, USB setup with MR Configurator2, two analog monitor channels and STO safety functionality.
MANUFACTURERMitsubishi Electric
MODEL / MPNMR-J4-70B
PRODUCT FAMILYMELSERVO-J4
MANUFACTURER STATUSCatalogue reference · confirm availability
Technical identity verified; commercial facts deliberately withheld
No price, stock, condition, authenticity or authorised-distributor claim is published on this sample.
LOGISTICS SNAPSHOT
Product-only shipping inputsNET DIMENSIONSConfirm with quote
NET WEIGHTConfirm with quote
UNIT ENVELOPE VOLUMEConfirm with quote
PACKED SHIPMENTConfirm with quote
Manufacturer dimensions are shown where verified. Missing net weight, total lever envelope, carton size and gross weight stay marked for confirmation before freight quotation.
- Quotation
- Human reviewed
- Availability
- Confirmed per enquiry
- Documents
- Official source linked
VERIFIED HIGHLIGHTS
MR-J4-70B verified product highlights
Facts below are based on Mitsubishi Electric manufacturer documentation, not promotional text embedded in supplied artwork.
0.75 kW 200 V class
MR-J4-70B is the 0.75 kW model for 200 V-class applications with 5.8 A rated output current.
Advanced tuning functions
One-touch tuning, adaptive filtering and advanced vibration suppression control II support machine commissioning.
Integrated diagnostics
Drive recorder, machine diagnosis, power monitoring and USB connection to MR Configurator2 aid setup and maintenance.
STO safety function
The amplifier includes an STO sub-function specified to IEC/EN 61800-5-2; the final machine safety design must follow the official manual.
TECHNICAL DATA
MR-J4-70B specifications
型号身份
Model identity
Exact model identity, manufacturer series and catalogue classification.
- Model
- MR-J4-70B
- Series
- MELSERVO-J4
- Product type
- AC servo amplifier
- Structure
- Force-cooled open type, IP20
技术参数
Technical parameters
Primary electrical, performance and compatibility parameters.
- Rated capacity
- 0.75 kW
- Rated output voltage
- 3-phase 170 VAC
- Rated output current
- 5.8 A
- Main circuit power input
- 3-phase or 1-phase 200 to 240 VAC, 50/60 Hz
- Main circuit rated input current
- 3.8 A with 3-phase input
- Permissible main input voltage
- 3-phase or 1-phase 170 to 264 VAC
- Control circuit input
- 1-phase 200 to 240 VAC, 50/60 Hz
- Control method
- Sine-wave PWM control and current control
- Built-in regenerative resistor capacity
- 20 W
- Analog monitor
- 2 channels
- Operating temperature
- 0 to +55 deg C, non-freezing
- Operating and storage humidity
- 5 to 90% RH, non-condensing
接口与兼容
Interface & compatibility
Connection, communication and supported system notes.
- Command interface
- SSCNET III/H
- Interface power supply
- 24 VDC +/-10%, 0.3 A required including CN8 signals
- Command communication cycle
- 0.222 ms, 0.444 ms or 0.888 ms
- Setup communication
- USB for MR Configurator2-compatible computer
机械与安装
Mechanical & installation
Dimensions, weight, mounting and enclosure information.
- Safety sub-function
- STO according to IEC/EN 61800-5-2
- Dimensions
- 60 x 168 x 185 mm (W x H x D)
- Mass
- 1.4 kg
环境条件
Operating environment
Temperature, humidity and protection ratings.
- Storage temperature
- -20 to +65 deg C, non-freezing
- Vibration resistance
- 5.9 m/s2 at 10 to 55 Hz in X, Y and Z axes
其它资料
Additional notes
Additional source-backed notes and quote-confirmed fields.
- Manufacturer
- Mitsubishi Electric
- Power class
- 200 V AC
- Control circuit power consumption
- 30 W
- Dynamic brake
- Built in
- Altitude
- 2000 m max., subject to manufacturer restrictions above 1000 m
Model-specific parameter checklist
These are the fields OMK checks for this product type before a formal quotation or replacement recommendation.
Rated input / outputPublished abovePower classPublished aboveControl modeConfirm before quoteCompatible motor or drive familyConfirm before quoteFeedback / encoder interfaceConfirm before quoteBraking, safety and installation notesConfirm before quote
Always confirm the current manual revision and installation requirements before engineering or purchasing decisions.
TYPICAL APPLICATION AREAS
Typical application areas for MR-J4-70B
Application fit depends on the complete machine risk assessment, wiring, environmental conditions and the latest manufacturer documentation.
- SSCNET III/H motion systems using compatible Mitsubishi Electric servo motors
- Packaging, handling and assembly machinery requiring 0.75 kW servo control
- High-response positioning systems with vibration-suppression tuning
- Exact-model maintenance replacement for an installed MR-J4-70B amplifier
MODEL-SPECIFIC RFQ
Start RFQ Need a current quote for MR-J4-70B?
Send quantity, destination and required date. Price and availability are confirmed before quotation.
