Model
LR-WF10C
PRIMARY PRODUCT IMAGEUnspecifiedVERIFIED CATALOGUE REFERENCE

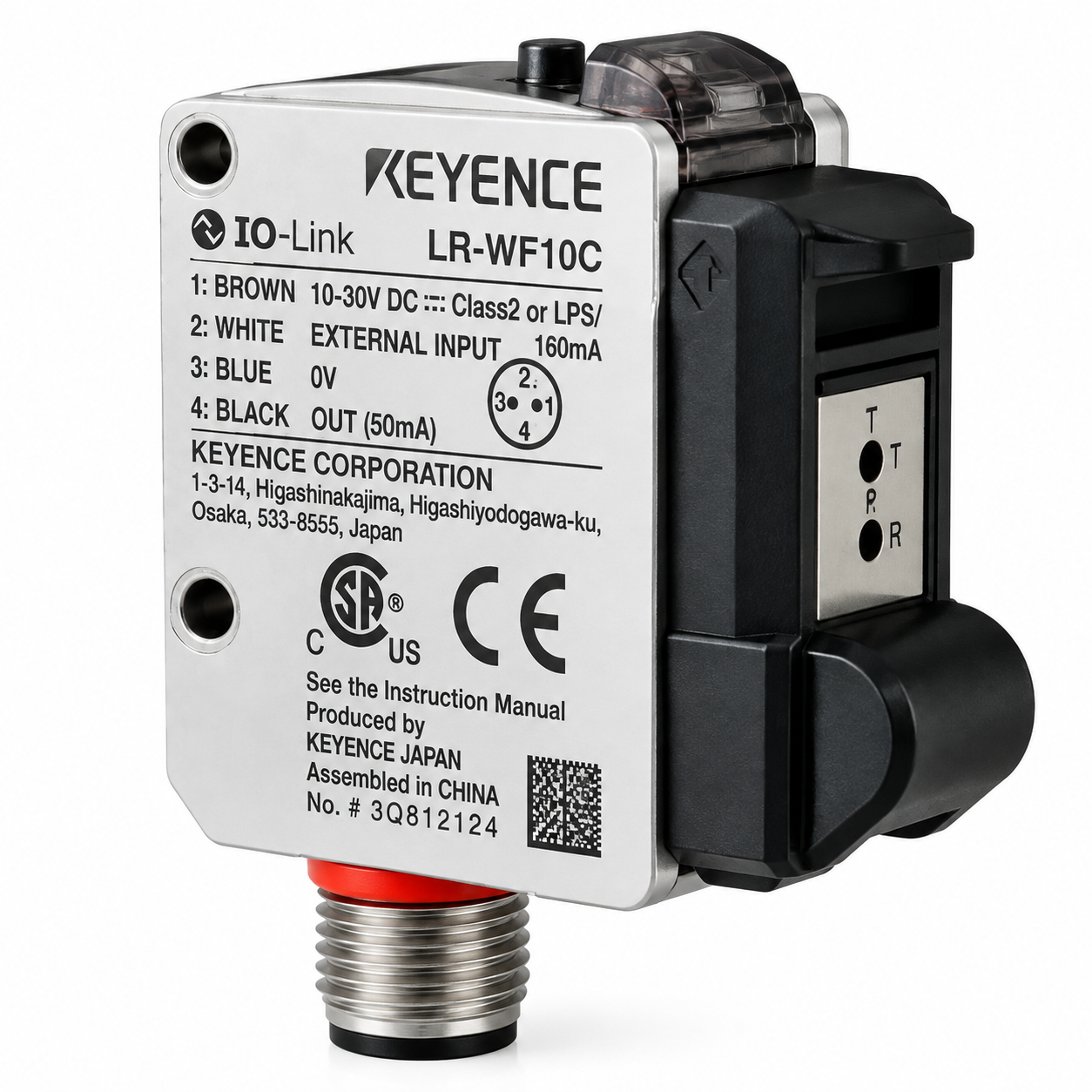

KEYENCE LR-WF10C Fiber Type Full-Spectrum Sensor
KEYENCE LR-WF10C is an LR-W series self-contained full-spectrum photoelectric sensor in a fiber type M12 4-pin connector format. It uses a white LED, selectable NPN or PNP output, selectable response times and IO-Link support for exact-model industrial automation sourcing.
MANUFACTURERKEYENCE
MODEL / MPNLR-WF10C
PRODUCT FAMILYUnspecified
MANUFACTURER STATUSCatalogue reference · confirm availability
Technical identity verified; commercial facts deliberately withheld
No price, stock, condition, authenticity or authorised-distributor claim is published on this sample.
LOGISTICS SNAPSHOT
Product-only shipping inputsNET DIMENSIONSConfirm with quote
NET WEIGHTConfirm with quote
UNIT ENVELOPE VOLUMEConfirm with quote
PACKED SHIPMENTConfirm with quote
Manufacturer dimensions are shown where verified. Missing net weight, total lever envelope, carton size and gross weight stay marked for confirmation before freight quotation.
- Quotation
- Human reviewed
- Availability
- Confirmed per enquiry
- Documents
- Official source linked
VERIFIED HIGHLIGHTS
LR-WF10C verified product highlights
Facts below are based on KEYENCE manufacturer documentation, not promotional text embedded in supplied artwork.
Series
LR-W series
Product type
Self-contained full-spectrum photoelectric sensor
Sensor format
Fiber Type, M12 connector 4-pin type
Detecting distance
Based on the attached fiber head
Light source
White LED
TECHNICAL DATA
LR-WF10C specifications
电源规格
Power & isolation
Input power, current draw and isolation-related ratings.
- Power voltage
- 10 to 30 VDC including 10 percent ripple, Class 2 or LPS
- Current consumption
- 50 mA or less at 24 VDC without load; 90 mA or less at 12 VDC without load
机械尺寸
Mechanical & mounting
Dimensions, cutout, weight, mounting and front-panel protection.
- Enclosure rating
- IP65 according to IEC60529, subject to fiber-unit and adapter conditions stated by KEYENCE
- Weight
- Approx. 95 g
环境条件
Operating environment
Temperature, humidity, altitude and vibration conditions.
- Relative humidity
- 35 to 85 percent RH, no condensation
型号与采购备注
Model identity & sourcing notes
Exact model identity, sourcing notes and quote-confirmed fields.
- Model
- LR-WF10C
- Series
- LR-W series
- Product type
- Self-contained full-spectrum photoelectric sensor
- Sensor format
- Fiber Type, M12 connector 4-pin type
- Detecting distance
- Based on the attached fiber head
- Light source
- White LED
- Control output
- NPN open collector or PNP open collector selectable, 30 VDC or less, 50 mA or less
- Response time
- 250 microseconds, 1 ms, 10 ms, 100 ms or 500 ms selectable
- Ambient temperature
- -20 to +45 C, no freezing
Model-specific parameter checklist
These are the fields OMK checks for this product type before a formal quotation or replacement recommendation.
Sensing method / sensor typeConfirm before quoteSensing distance or compatible amplifierConfirm before quoteOutput typeConfirm before quoteSupply voltageConfirm before quoteConnection / cable typeConfirm before quoteIngress protection / operating environmentConfirm before quote
Always confirm the current manual revision and installation requirements before engineering or purchasing decisions.
TYPICAL APPLICATION AREAS
Typical application areas for LR-WF10C
Application fit depends on the complete machine risk assessment, wiring, environmental conditions and the latest manufacturer documentation.
- Machine detection, positioning and presence-check tasks
- Replacement sourcing for maintenance and production-line downtime
- OEM or system-integrator bill-of-material confirmation
- Cross-checking cable, output and mounting requirements before quote
