Product type
D/A conversion module
PRIMARY PRODUCT IMAGEUnspecifiedVERIFIED CATALOGUE REFERENCE

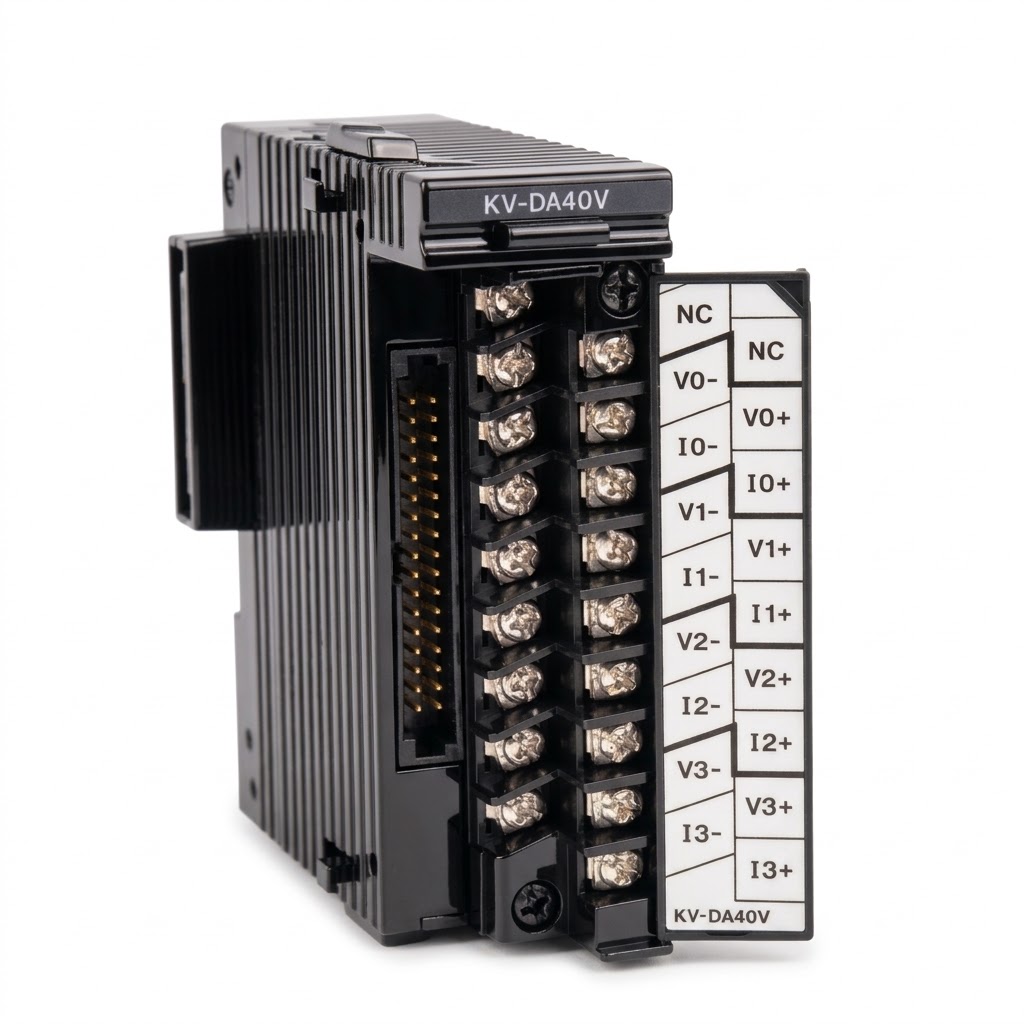

KEYENCE KV-DA40V 4-Channel Analog Output Module
KEYENCE KV-DA40V is a four-channel D/A module for generating analog control signals in a compatible PLC system. It supports selectable voltage and current output ranges with 25-microsecond conversion per channel. Confirm the CPU combination, product condition and delivery details with your quotation.
MANUFACTURERKEYENCE
MODEL / MPNKV-DA40V
PRODUCT FAMILYUnspecified
MANUFACTURER STATUSCatalogue reference · confirm availability
Technical identity verified; commercial facts deliberately withheld
No price, stock, condition, authenticity or authorised-distributor claim is published on this sample.
LOGISTICS SNAPSHOT
Product-only shipping inputsNET DIMENSIONSConfirm with quote
NET WEIGHTConfirm with quote
UNIT ENVELOPE VOLUMEConfirm with quote
PACKED SHIPMENTConfirm with quote
Manufacturer dimensions are shown where verified. Missing net weight, total lever envelope, carton size and gross weight stay marked for confirmation before freight quotation.
- Quotation
- Human reviewed
- Availability
- Confirmed per enquiry
- Documents
- Official source linked
VERIFIED HIGHLIGHTS
KV-DA40V verified product highlights
Facts below are based on KEYENCE manufacturer documentation, not promotional text embedded in supplied artwork.
Output channels
4
Voltage output ranges
-10 to +10 V; 0 to 10 V; 0 to 5 V; 1 to 5 V
Current output ranges
0 to 20 mA; 4 to 20 mA
Conversion time
25 microseconds per channel
Internal current consumption
170 mA maximum
TECHNICAL DATA
KV-DA40V specifications
- Product type
- D/A conversion module
- Output channels
- 4
- Voltage output ranges
- -10 to +10 V; 0 to 10 V; 0 to 5 V; 1 to 5 V
- Current output ranges
- 0 to 20 mA; 4 to 20 mA
- Conversion time
- 25 microseconds per channel
- Internal current consumption
- 170 mA maximum
- Isolation
- CPU interface isolated; channels not isolated from each other
- Approximate product mass
- 150 g
- Packed weight and dimensions
- Confirm with quote
Always confirm the current manual revision and installation requirements before engineering or purchasing decisions.
TYPICAL APPLICATION AREAS
Typical application areas for KV-DA40V
Application fit depends on the complete machine risk assessment, wiring, environmental conditions and the latest manufacturer documentation.
MODEL-SPECIFIC RFQ
Start RFQ Need a current quote for KV-DA40V?
Send quantity, destination and required date. Price and availability are confirmed before quotation.
