Product type
A/D conversion module

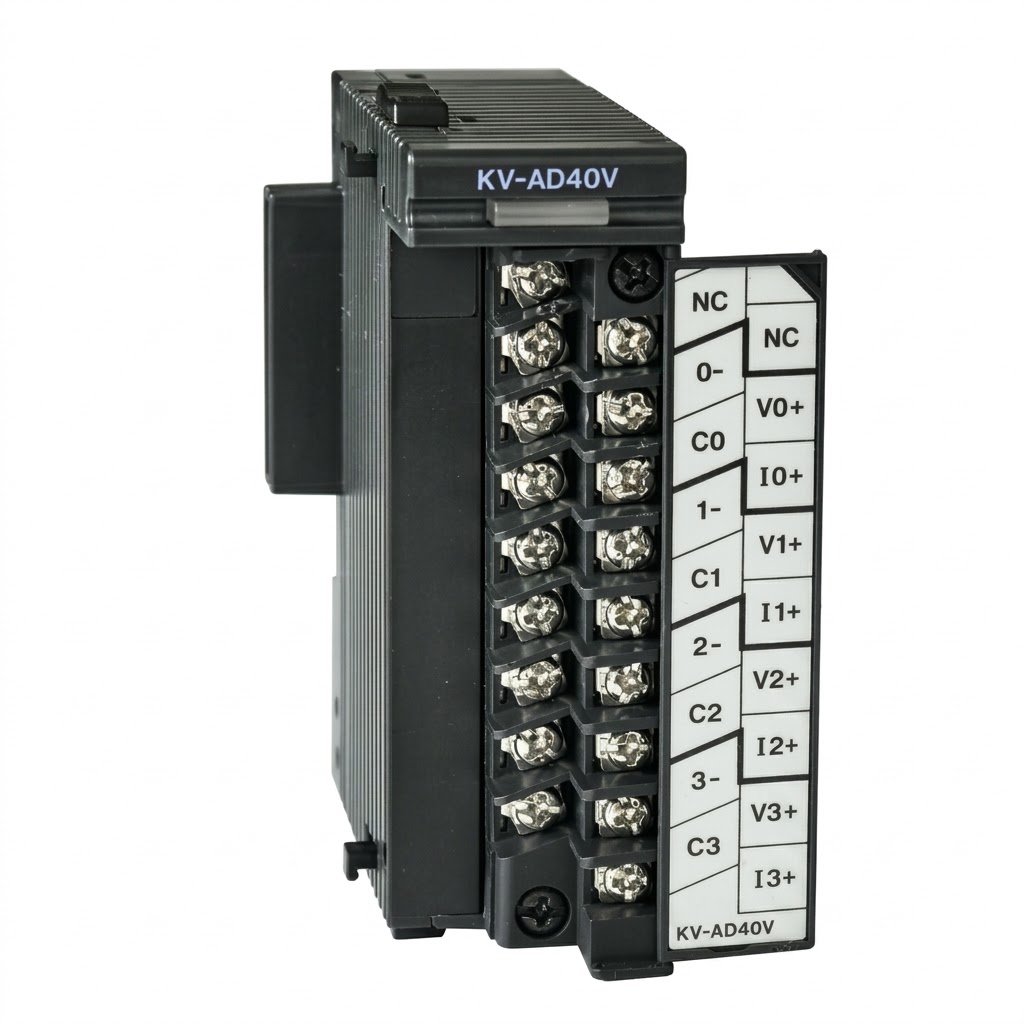

PRIMARY PRODUCT IMAGEUnspecifiedVERIFIED CATALOGUE REFERENCE
KEYENCE KV-AD40V 4-Channel Analog Input Module
KEYENCE KV-AD40V converts four differential analog inputs into PLC data. Selectable voltage and current ranges support connection to industrial measurement signals. Check the CPU and system configuration before ordering. Availability, condition and shipping are confirmed by quotation.
MANUFACTURERKEYENCE
MODEL / MPNKV-AD40V
PRODUCT FAMILYUnspecified
MANUFACTURER STATUSCatalogue reference · confirm availability
Technical identity verified; commercial facts deliberately withheld
No price, stock, condition, authenticity or authorised-distributor claim is published on this sample.
LOGISTICS SNAPSHOT
Product-only shipping inputsNET DIMENSIONSConfirm with quote
NET WEIGHTConfirm with quote
UNIT ENVELOPE VOLUMEConfirm with quote
PACKED SHIPMENTConfirm with quote
Manufacturer dimensions are shown where verified. Missing net weight, total lever envelope, carton size and gross weight stay marked for confirmation before freight quotation.
- Quotation
- Human reviewed
- Availability
- Confirmed per enquiry
- Documents
- Official source linked
VERIFIED HIGHLIGHTS
KV-AD40V verified product highlights
Facts below are based on KEYENCE manufacturer documentation, not promotional text embedded in supplied artwork.
Input channels
4 differential
Voltage input ranges
-10 to +10 V; -5 to +5 V; 0 to 10 V; 0 to 5 V; 1 to 5 V
Current input ranges
0 to 20 mA; 4 to 20 mA
Conversion time
25 microseconds per channel; temperature drift correction adds 25 microseconds when enabled
Internal current consumption
140 mA maximum
TECHNICAL DATA
KV-AD40V specifications
- Product type
- A/D conversion module
- Input channels
- 4 differential
- Voltage input ranges
- -10 to +10 V; -5 to +5 V; 0 to 10 V; 0 to 5 V; 1 to 5 V
- Current input ranges
- 0 to 20 mA; 4 to 20 mA
- Conversion time
- 25 microseconds per channel; temperature drift correction adds 25 microseconds when enabled
- Internal current consumption
- 140 mA maximum
- Isolation
- CPU interface isolated; channels not isolated from each other
- Approximate product mass
- 150 g
- Packed weight and dimensions
- Confirm with quote
Always confirm the current manual revision and installation requirements before engineering or purchasing decisions.
TYPICAL APPLICATION AREAS
Typical application areas for KV-AD40V
Application fit depends on the complete machine risk assessment, wiring, environmental conditions and the latest manufacturer documentation.
