Product type
Absolute contact sensor head
PRIMARY PRODUCT IMAGEUnspecifiedVERIFIED CATALOGUE REFERENCE

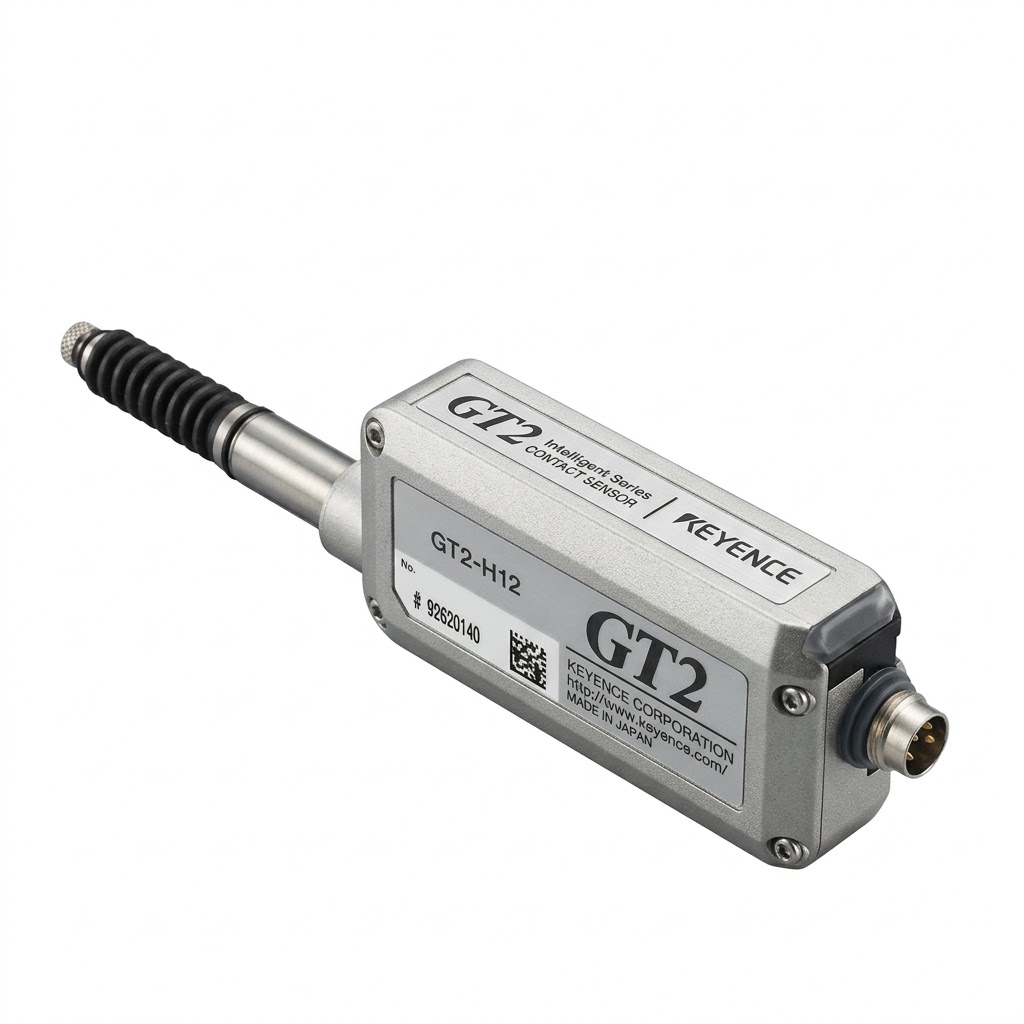

KEYENCE GT2-H12 12 mm Contact Sensor Head
KEYENCE GT2-H12 is an absolute contact measurement head with a 12 mm measuring range. Its CMOS scale-reading system supports displacement and dimensional checks in compatible GT2 systems. The sensor cable is optional. Request a quote to confirm the amplifier, cable, condition and delivery requirements.
MANUFACTURERKEYENCE
MODEL / MPNGT2-H12
PRODUCT FAMILYUnspecified
MANUFACTURER STATUSCatalogue reference · confirm availability
Technical identity verified; commercial facts deliberately withheld
No price, stock, condition, authenticity or authorised-distributor claim is published on this sample.
LOGISTICS SNAPSHOT
Product-only shipping inputsNET DIMENSIONSConfirm with quote
NET WEIGHTConfirm with quote
UNIT ENVELOPE VOLUMEConfirm with quote
PACKED SHIPMENTConfirm with quote
Manufacturer dimensions are shown where verified. Missing net weight, total lever envelope, carton size and gross weight stay marked for confirmation before freight quotation.
- Quotation
- Human reviewed
- Availability
- Confirmed per enquiry
- Documents
- Official source linked
VERIFIED HIGHLIGHTS
GT2-H12 verified product highlights
Facts below are based on KEYENCE manufacturer documentation, not promotional text embedded in supplied artwork.
Measuring range
12 mm
Resolution
0.5 micrometers
Indicated accuracy
2 micrometers peak-to-peak at 20 degrees C
Sampling interval
1 ms
Enclosure rating
IP67
TECHNICAL DATA
GT2-H12 specifications
- Product type
- Absolute contact sensor head
- Measuring range
- 12 mm
- Resolution
- 0.5 micrometers
- Indicated accuracy
- 2 micrometers peak-to-peak at 20 degrees C
- Sampling interval
- 1 ms
- Enclosure rating
- IP67
- Operating temperature
- -10 to +55 degrees C, no freezing
- Sensor head cable
- Optional, M8 connection
- Approximate product mass
- 95 g excluding cable
- Packed weight and dimensions
- Confirm with quote
Always confirm the current manual revision and installation requirements before engineering or purchasing decisions.
TYPICAL APPLICATION AREAS
Typical application areas for GT2-H12
Application fit depends on the complete machine risk assessment, wiring, environmental conditions and the latest manufacturer documentation.
MODEL-SPECIFIC RFQ
Start RFQ Need a current quote for GT2-H12?
Send quantity, destination and required date. Price and availability are confirmed before quotation.
